Location

Purposes

The main purpose of this module is to enable the user to view and manage the Warehouse locations on the System. While adding a warehouse users will be able to select the location for their warehouse from the locations that are actively available here.

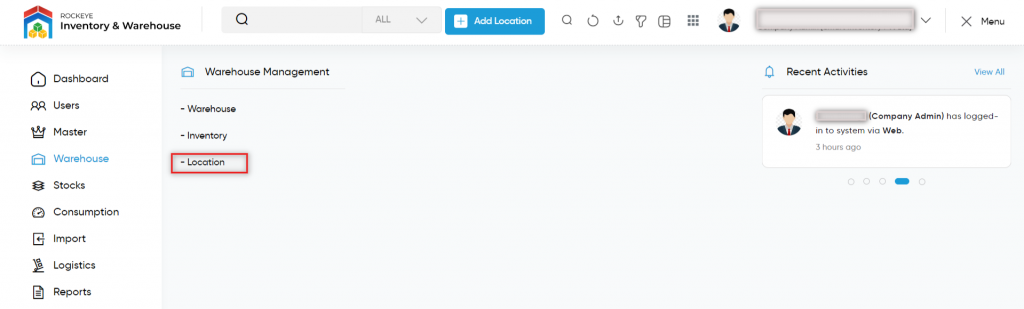

Navigation Path

Path: Waster > Warehouse Management > Location

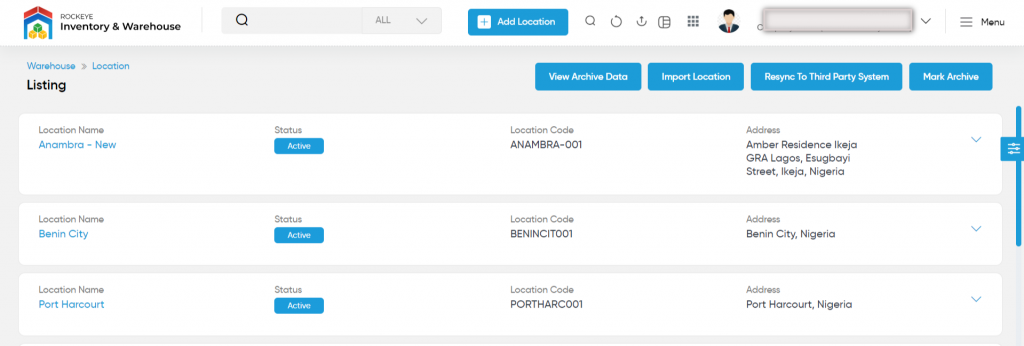

Listing Screen

View list of all the Warehouse Locations that were previously added by the User. Users will have the option to add, update, import, and Archive the Warehouse Locations. Users will be able to search the Warehouse Location using the filter option this is provided on the list. The data will be available in the form of Table and List views.

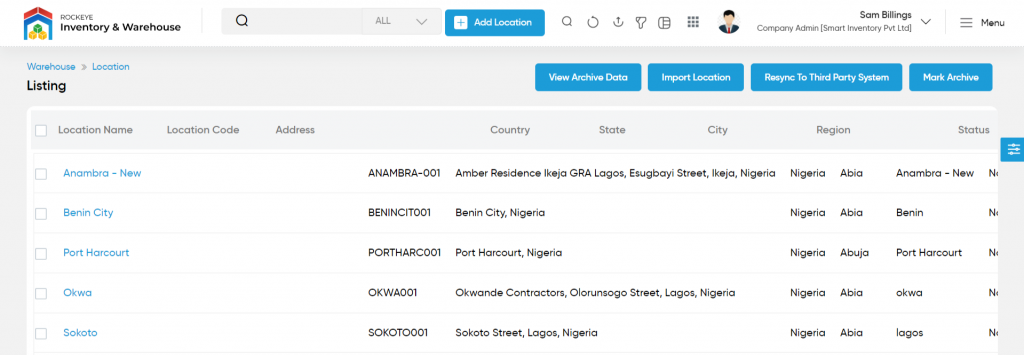

Table View

Mark the Warehouse Location Archive

• Users will have the option to Archive the Warehouse Location from the list.
• The user needs to select the locations from the listing for Archiving the Locations.

View the Archived Warehouse Location

• On clicking the View Archive Data button, user will able to view all the archived warehouse locations.

Add New Location: To add a new location, click on the below button

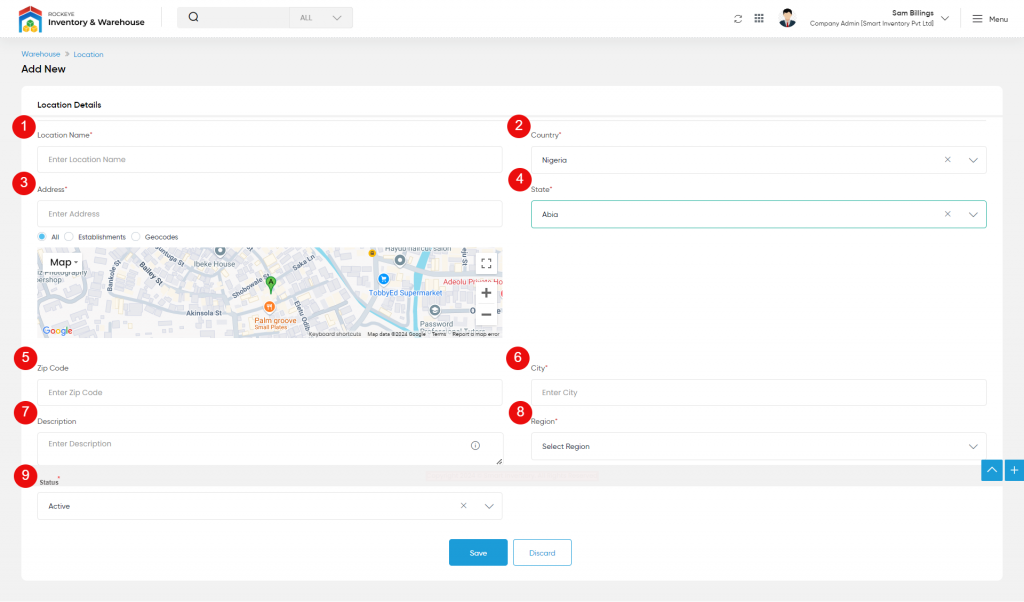

Add/Edit Warehouse Location

• User will be able to Add/Update the warehouse location from this page
• The user needs to fill in the warehouse location information to add/edit the location in the system.

Fields available in the Add/Edit Warehouse Location Form

1. Location Name (Required): This is for specifying the name of the Warehouse Location.
2. Country (Required): This is for specifying the Country Name of the location. Once the country is selected then states related to the specified country will be available in the state dropdown.
3. Address (Required): This is for specifying the address of the location. Once the address is entered, a dropdown related to all the locations of that address will appear here. Choose the required address from the dropdown or enter it manually. The map will show the direction of the address.
4. State (Required): Choose the State name of the location.
5. ZipCode: Set the Zipcode of the warehouse location.
6. City(Required): This is for specifying the City of the location.
7. Description: Set the description of the warehouse location if needed.
8. Region(Required): This allows the user to set the region, by selecting from the drop-down list.
9. Status (Required): Set the status of the Warehouse Location, as Active/Inactive using the dropdown list.

• Users can save the Warehouse Location by submitting the form or can discard the Location.
• On Submission, the Location will be listed on the Warehouse Location listing page.
